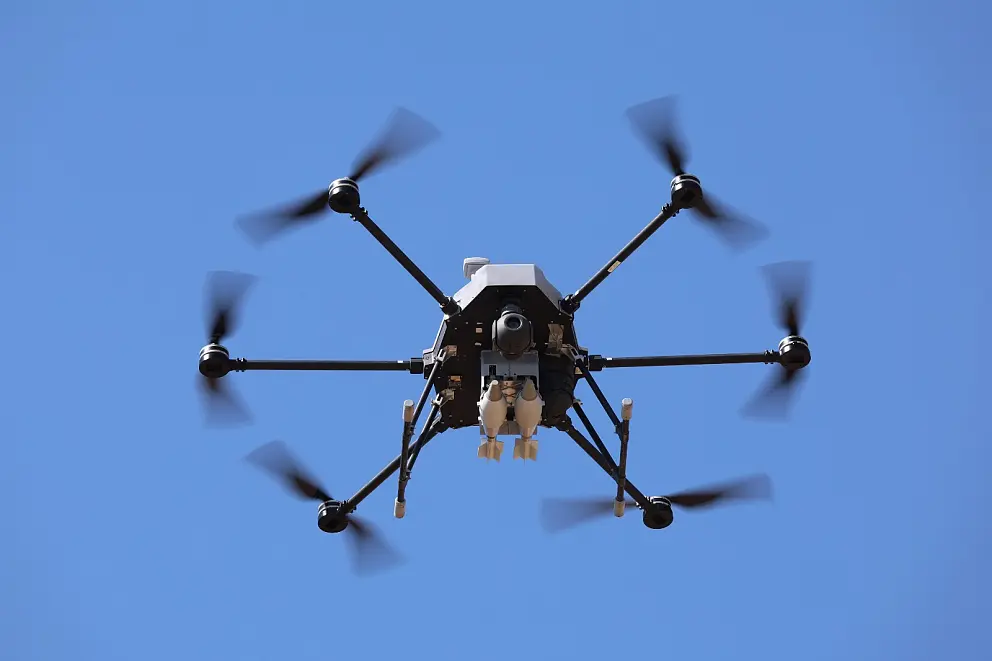

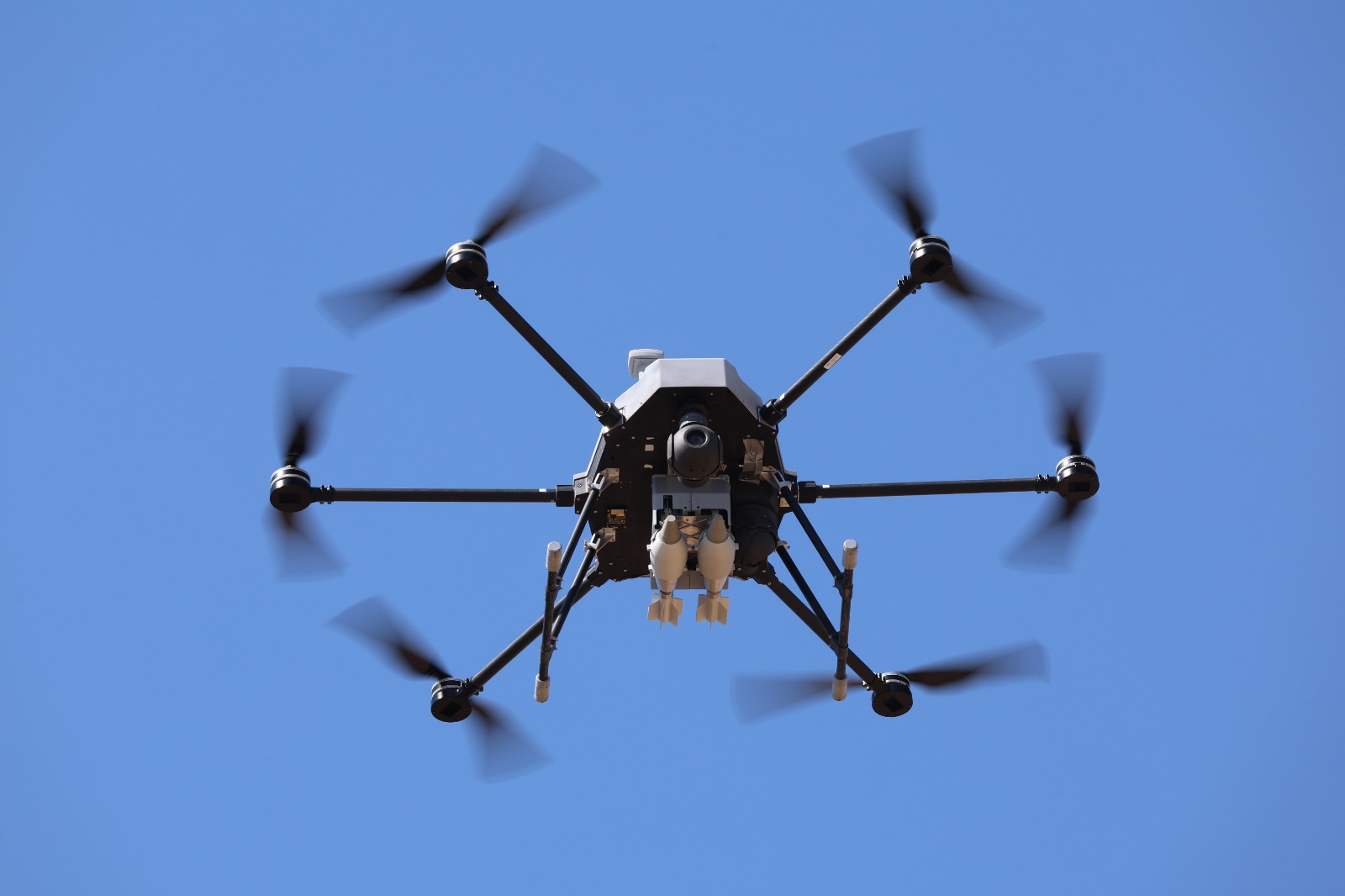

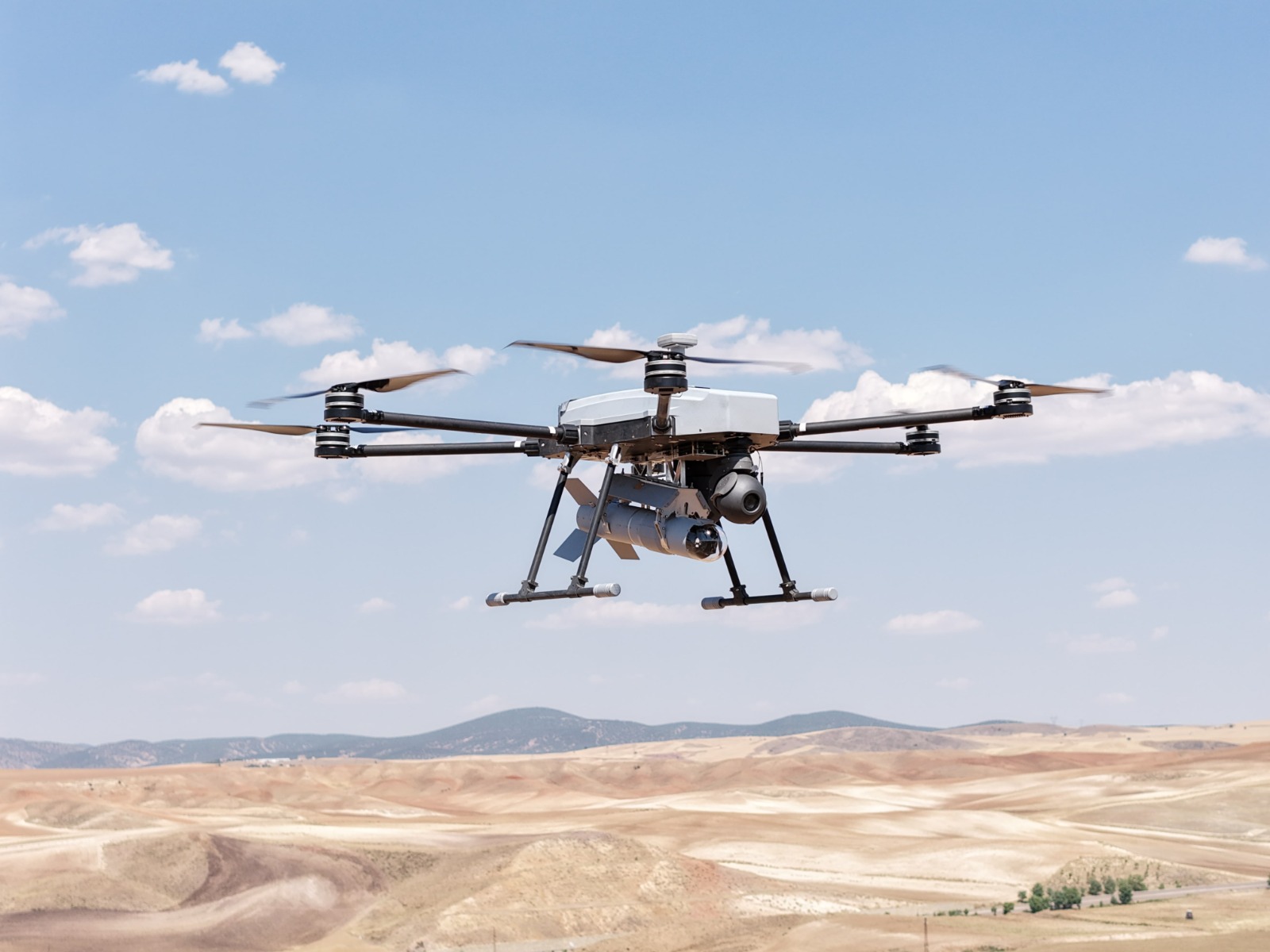

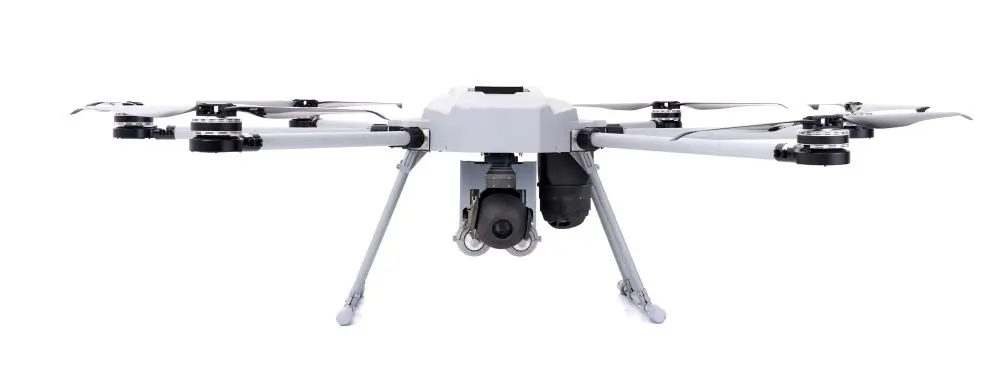

BOYGA-B
Ammunition Drop UAV
Boyga-B is a high-precision and modular rotary-wing carrier platform developed by STM. It is capable of carrying the TUNGA Smart Munition and multiple 81 mm UAV ammunition. Designed to successfully perform missions such as reconnaissance-surveillance, target engagement, and the deployment of munitions and FPV systems on the tactical battlefield, it features CRPA and Kerkes integration, allowing it to operate in GNSS-denied or GNSS-jammed environments. With autonomous, semi-autonomous, and manual flight modes, it provides operational flexibility for the user. Its integrated release mechanism and smart release board allow for the easy integration of various types of munitions.
Capabilities
- Capable of operating day/night missions
- Target detection and tracking with high-resolution onboard imaging system
- Real-time EO/IR image transmission to Ground Control Station
- Autonomous munition release and mission cancellation capability
- Emergency mode management
- High-performance navigation and flight control system
- Operable by a single soldier
- Mission planning and autonomous mission execution
- Payloads selected for mission-specific needs can be easily replaced by a single operator in the field
- Optional CRPA and Kerkes integration
Imaging System
| Optical Zoom | 40x |
| Optical Camera Resolution | 1920 × 1080 |
| Thermal Camera Digital Zoom | 8X |
| Thermal Camera Resolution | 640 × 512 |
Munition Mod- 132 (81 mm UAV Ammuniton)
| Fuze Type | Precision Super Quick Impact Fuze |
| Weight | 2 kg |
| Warhead | 1300 fragments, 5 mm each |
| Effective Radius | 15 m |
Payload Options
- 1x TUNGA Smart Munition
- 2x MOD 132 Munitions
- 1x KarguFPV Carry-and-Release
Take off Weight
≤ 28 kg
Payload Capacity
≤ 8 kg
Dimensions (Arms extended, excluding propellers) (LxWxH)
1860 × 1540 × 660 mm
Folded (including propellers) (LxWxH)
770 × 655 × 660 mm
Diagonal Axle Distance
1860 mm
Geometric Configuration
Hexacopter (6 Motors)
Maximum Cruise Speed
15 m/s
Flight Time
≤ 35 minutes
Range
10 km
Mission Flight Altitude (AGL/MSL)
800 m / 3000 m
Operating Temperature
-20°C to +50°C
Wind Resistance
10 m/s
