VTOL

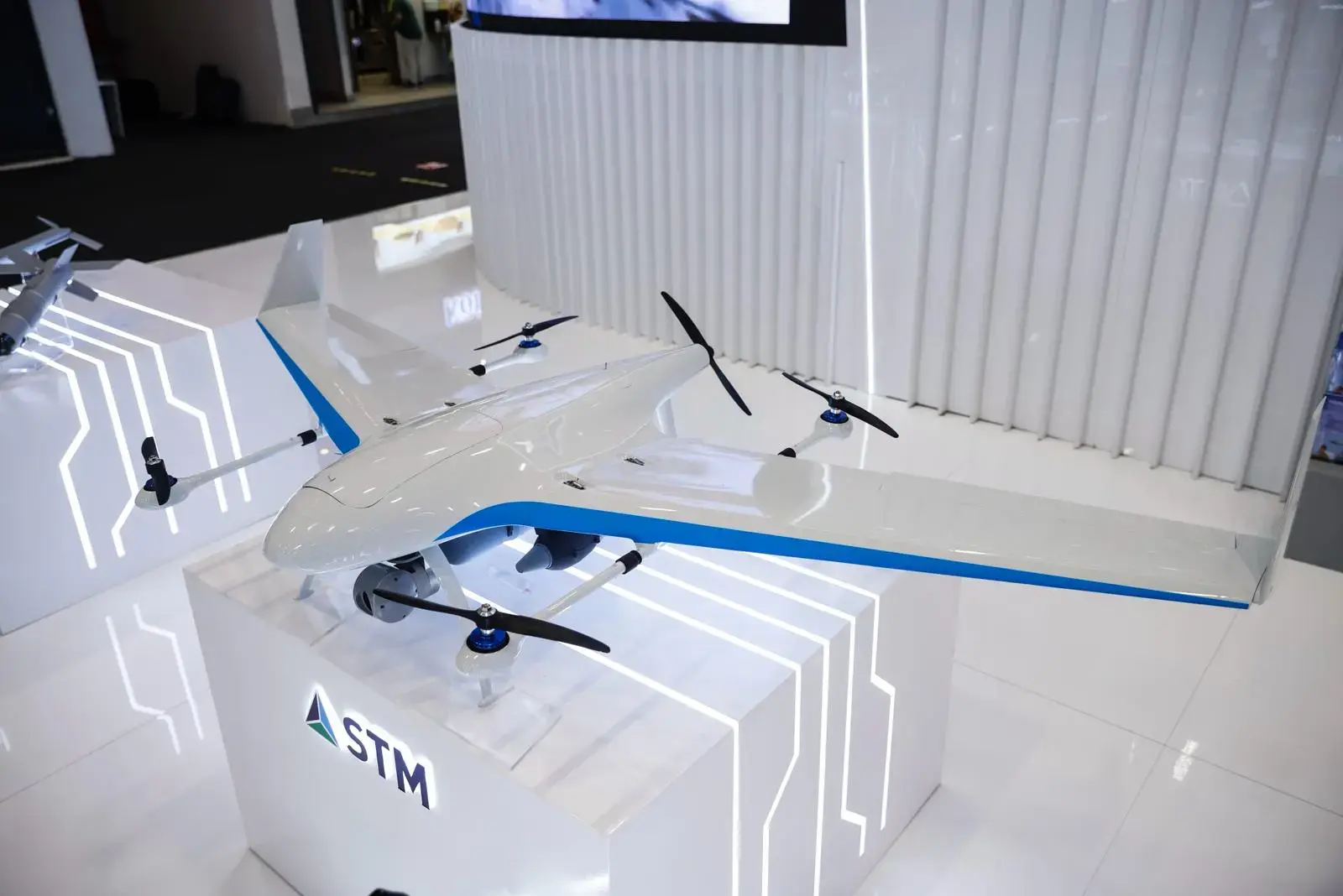

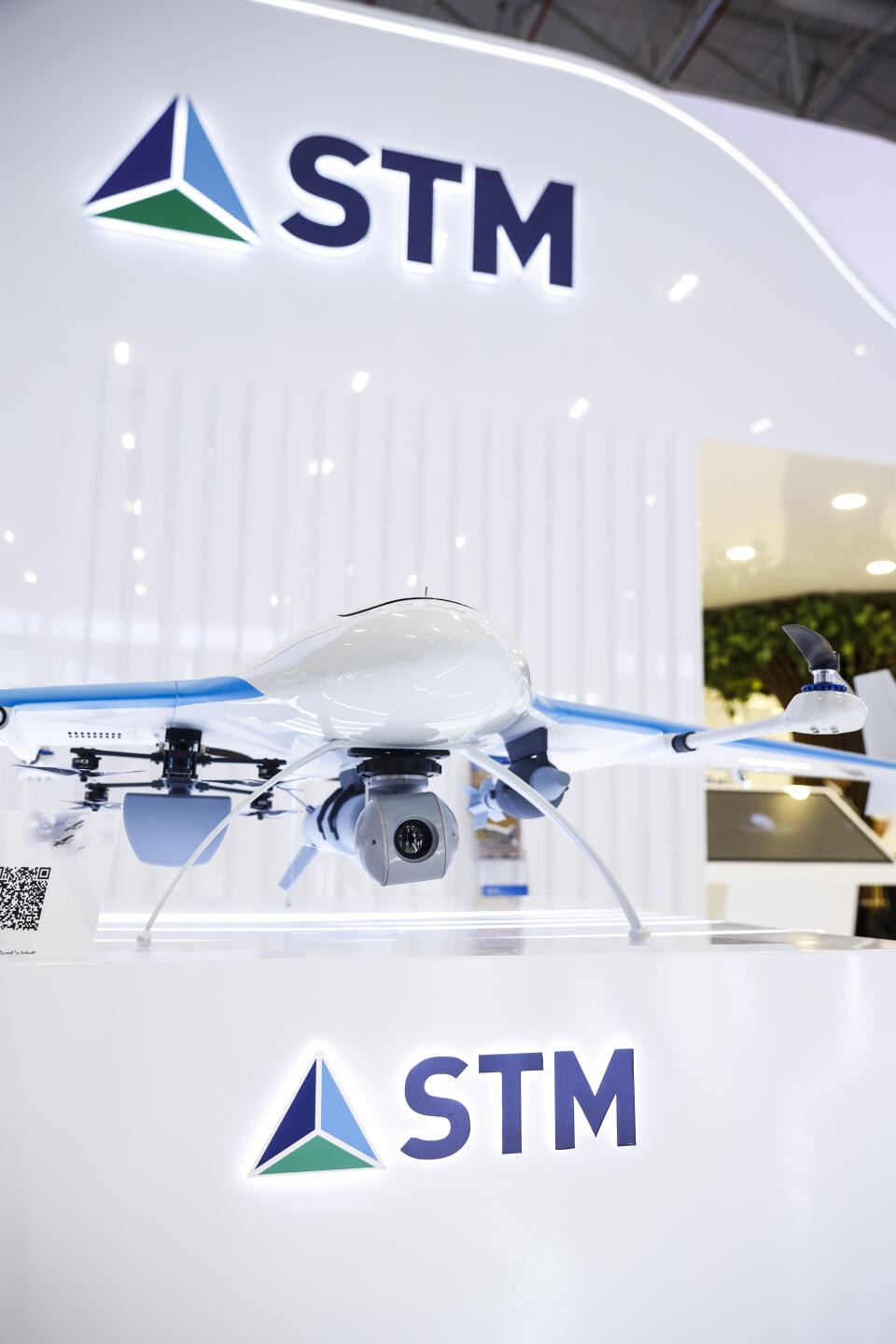

STM FIXED-WING VTOL UAV System
The Fixed-Wing VTOL UAV System developed by STM is a versatile unmanned aerial vehicle that eliminates the need for a runway and, with its autonomous mission capability, can be used in both Military and civilian operations.
Standing out with its long endurance and high payload capacity, the system can autonomously perform missions such as reconnaissance, surveillance (ISR), payload delivery, surface mine detection, and carrying FPV drones.
Thanks to its integrated EO/IR imaging systems, it can operate both day and night. It can be set up in a short time by a single operator and offers significant operational advantages in the field with its multi-munition carrying capability.
Capabilities
- Real-time video transmission with EO/IR sensors
- Day/night operational capability
- Target tracking
- Target identification
Naval Missions
- Take-off from surface platforms
- Surface mine detection and sweeping operations
- Beyond Line-of-Sight (BLOS) intelligence gathering
Operational Flexibility
- Runway-independent deployment
- Compact structure
- Modular design
- Autonomous Mission Planning
Strategic Advantages
- Multi-Role Capability
- Long Endurance, Extended Presence
- High Impact, Low Signature
- Ease of Use
Take-off Weight
≤ 35 kg
Payload Capacity
≤ 10 kg
Wingspan
3600 mm
Fuselage Length
1900 mm
Height
1200 mm
Maximum Cruise Speed
25 m/s
Endurance
≤ 2 hours
Range
Minimum 30 km
Mission Flight Altitude (AGL/MSL)
1500 m / 3500 m
Operating Temperature
-20°C to +50°C
Wind Resistance
15 m/s (cruise), 10 m/s (hover)
