Submarine - STM 500

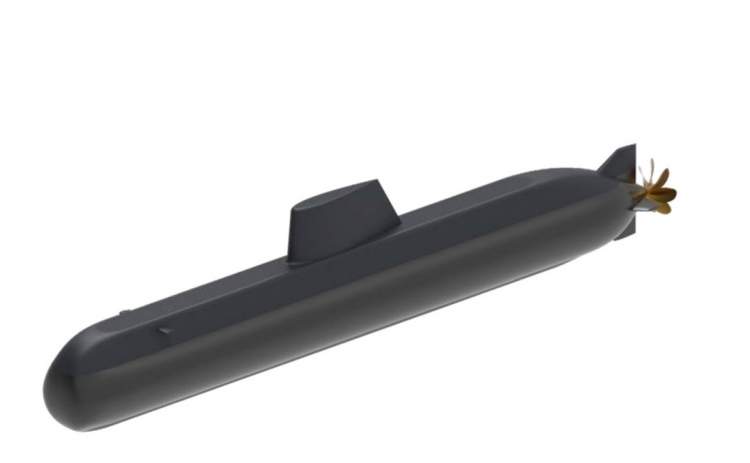

STM500 Submarine is a shallow water diesel-electric attack submarine design developed by STM.
The platform is capable of enduring 22+8 (SF) personnel for 30 days at depths more than 200 meters, ready to fire its 4 tubes loaded with a variety of 8 modern heavy weight torpedoes and guided missiles & mine laying.
Download Brochure
Capabilities & Competencies
- Surface and Submarine Warfare
- Intelligence, Surveillance, and Reconnaissance
- Special Forces Operations
- Diving Chamber to deploy 8 Special Forces personnel at the same time
- Mine Warfare
- Shallow water operations
- UXV operations
- SDV adaptation
- Diving depth: 200+ m
- Endurance: 30 days
Sensors & Weapons
- Combat Management System
- Navigation Radar
- Optronic Search and Attack Periscopes
- Torpedo Counter Measures (Decoys-Jammers)
- ESM
- Sonars: CAS, CTA, MAS, IDRS, ONA
- 4 weapon tubes and 4 additional payload stowage
Features
| Main Dimensions | |
| Lenght Overall | 47 m |
| Diameter | 4.6 m |
| Max. Height | 9.8 m |
| Tonnage | |
| Displacement |
Surfaced - 563 t Submerged - 635 t |
| Speed, Range & Endurance | |
| Max Speed | 18 kts |
| Cruising Speed | 5 kts |
| Endurance | 30 days |
| Range | ~3500 nm |
Main Propulsion
- Permanent Excited Propulsion Motor
Power Generation
- 2x Diesel Generator
- Lithium-Ion Batteries & Optional AIP System
Accommodation
- Accommodation for 22 crew
- +8 additional accommodation area for Special Forces personnel
- CO's Cabin
- Galley, dry provision store, cold room, mess room
- 2 WCs
