DAR®
Through The Wall Radar
The Through The Wall Radar (DAR) is a radar system used to obtain 2D position information of the target stationary and moving elements, which are located in enclosed areas where there is no visual access, through ultra-wideband (UWB) signals.
Apart from various military operations, such as hostage rescue, counter-terrorism and internal security operations, DAR can also be used for various civilian purposes, such as firefighting and post-disaster rescue operations (earthquake, avalanche, fire).
DAR can also be used for migrant smuggling and human smuggling.
Download Brochure

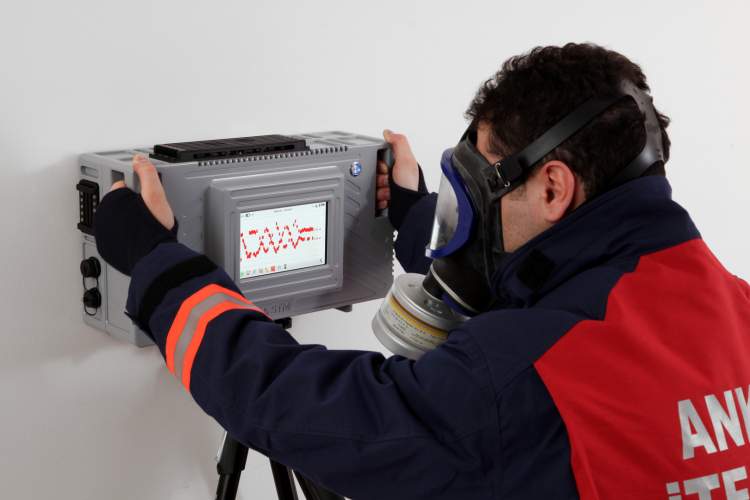

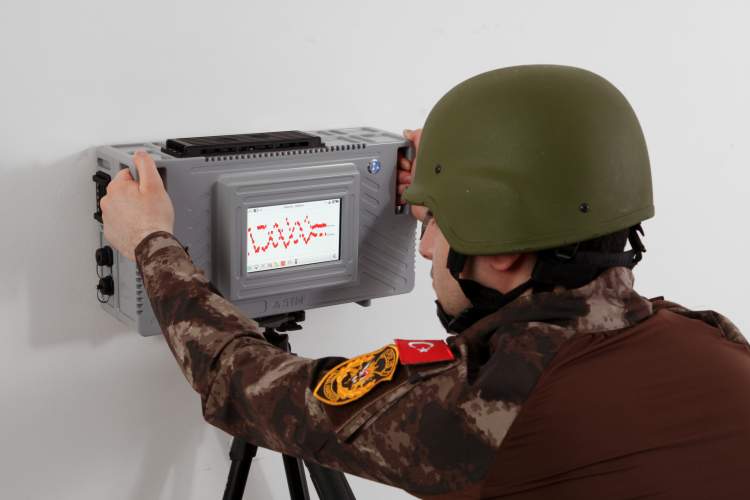

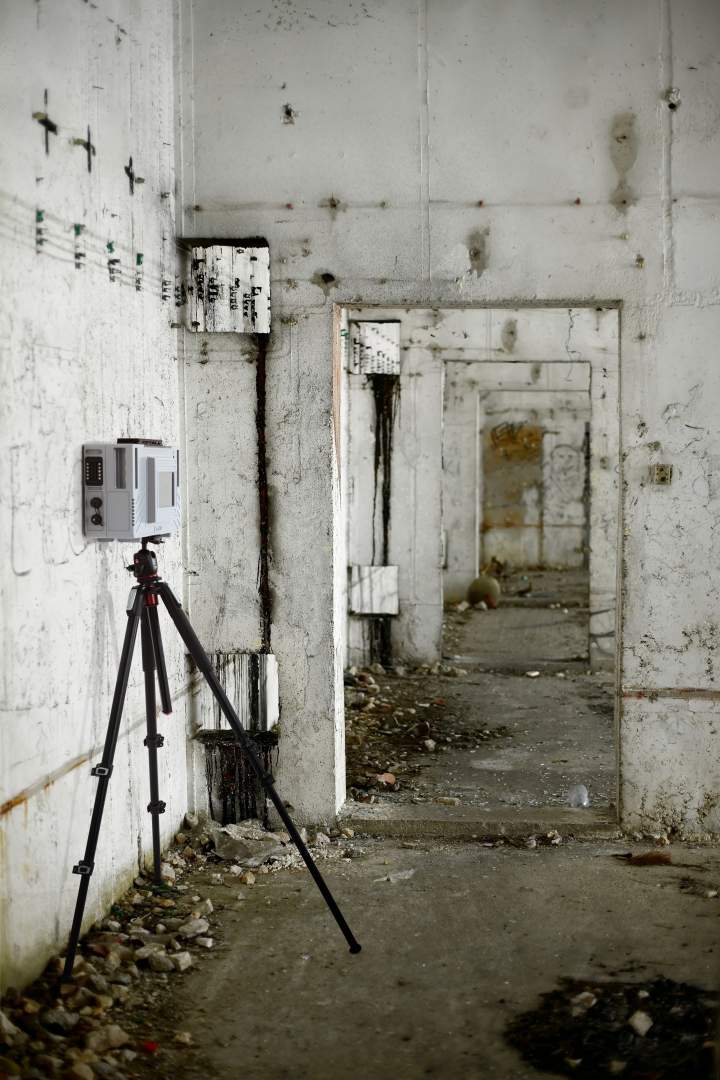

The DAR system is designed to be used in the hand, and it can be placed in the target area with the help of tripod and similar tools, and be controlled remotely with a tablet.
Main Features
- Lightweight and ergonomic design
- Remote control capability
- High range resolution
- Effective penetration ability
- Macro and micro motion detection capability
- Low power consumption and use with internal battery
- Location and distance estimation of stable or moving or static targets
- Dust protection
- Save and replay the task
- Wall detection

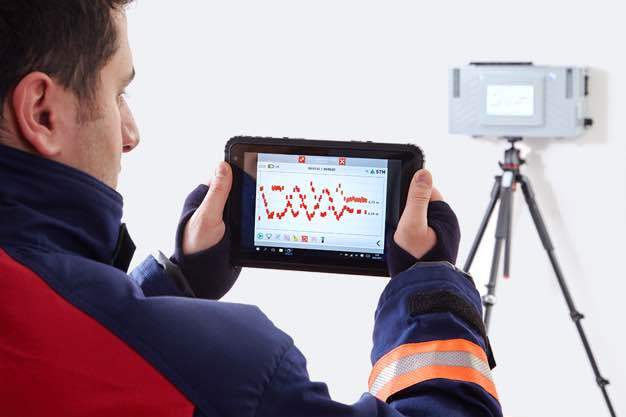

- Remote viewing and control with tablet
- Foreign language support
Technical Features
| Size | : 48cm x 26cm x 16cm |
| Weight | : 6,5 kg |
| Detection Distance | : 22 m (in free field) |
| Motion Detection | : Macro and micro movements |
| Wall Types | : Brick, plasterboard, wood, plastic, concrete, etc. |
| Cross-range Field of View | : 112° |
| Display Modes | : 1D, 2D |
| Screen Size | : 7" |
| Power Type | : Built-in rechargable battery and mains |
| Battery Operating Life (h) | : 4 hours |
| Ingress Protection | : IP66 |
