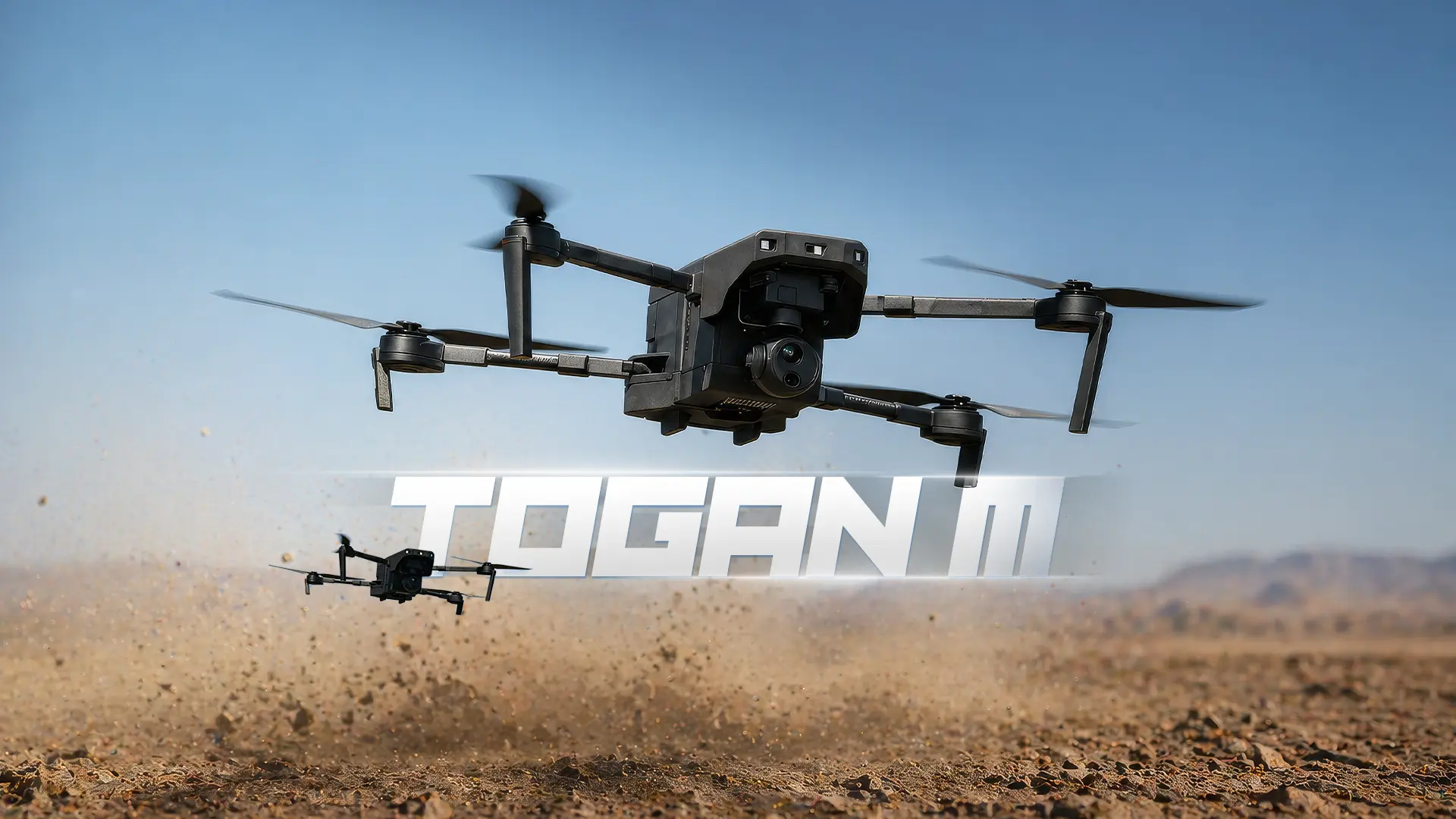

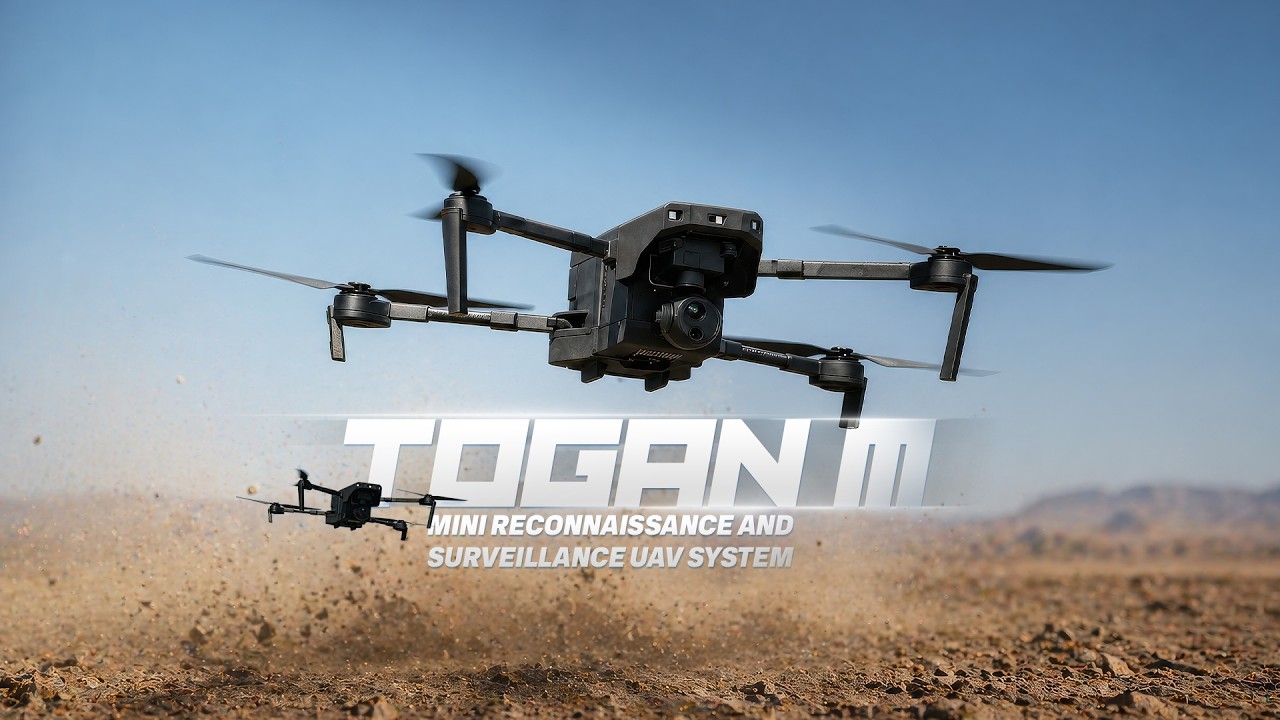

TOGAN M
Mini Reconnaissance and Surveillance UAV System

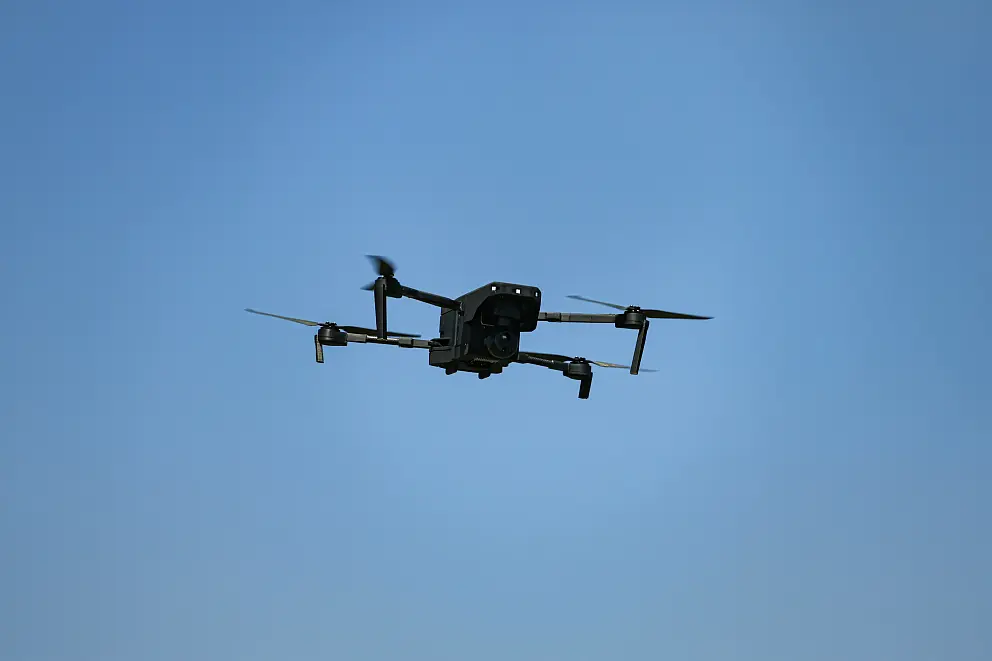

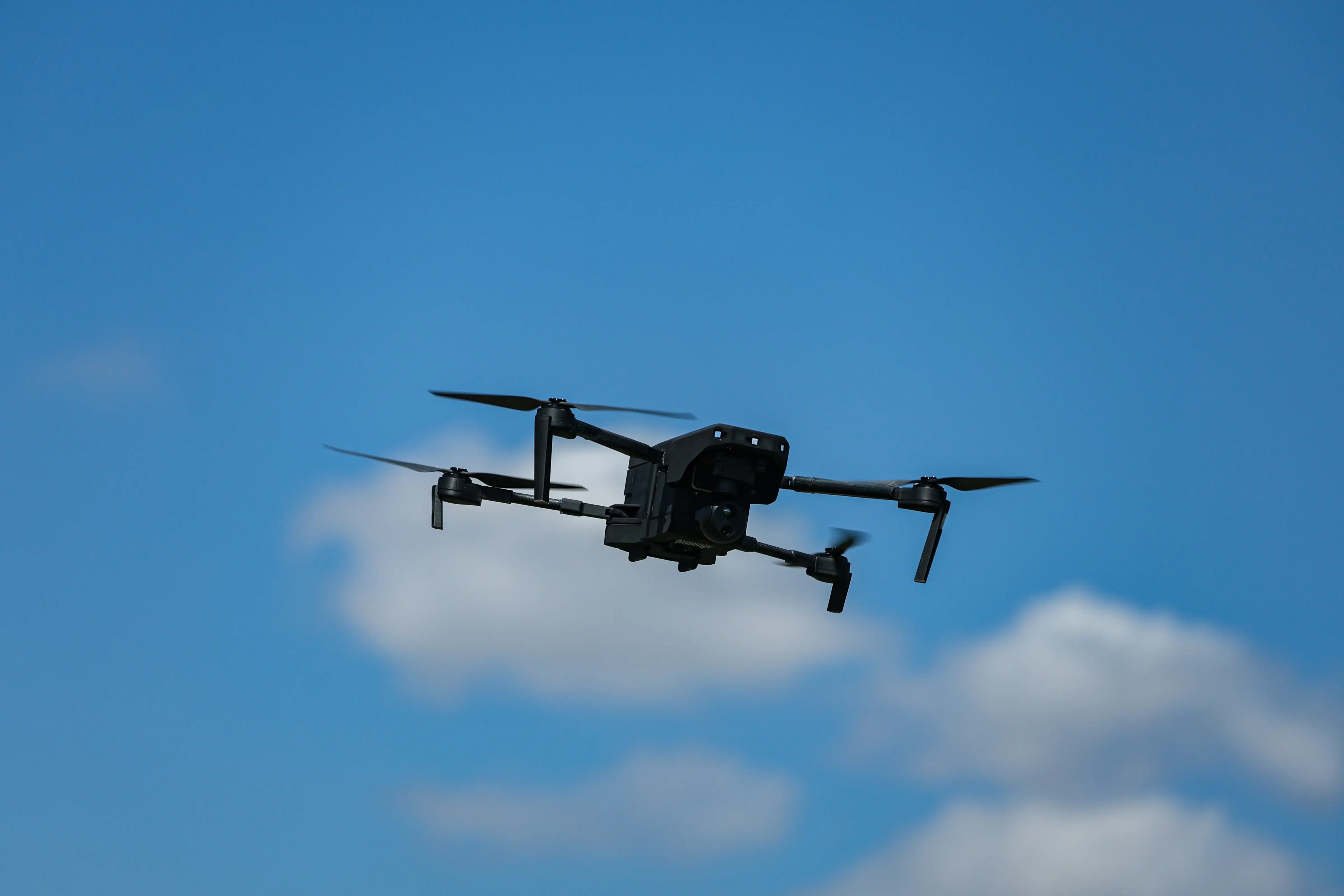

TOGAN-M® , is a multi-rotor mini UAV system developed with STM’s proprietary flight control and ground control software, specifically engineered for critical reconnaissance and surveillance missions.

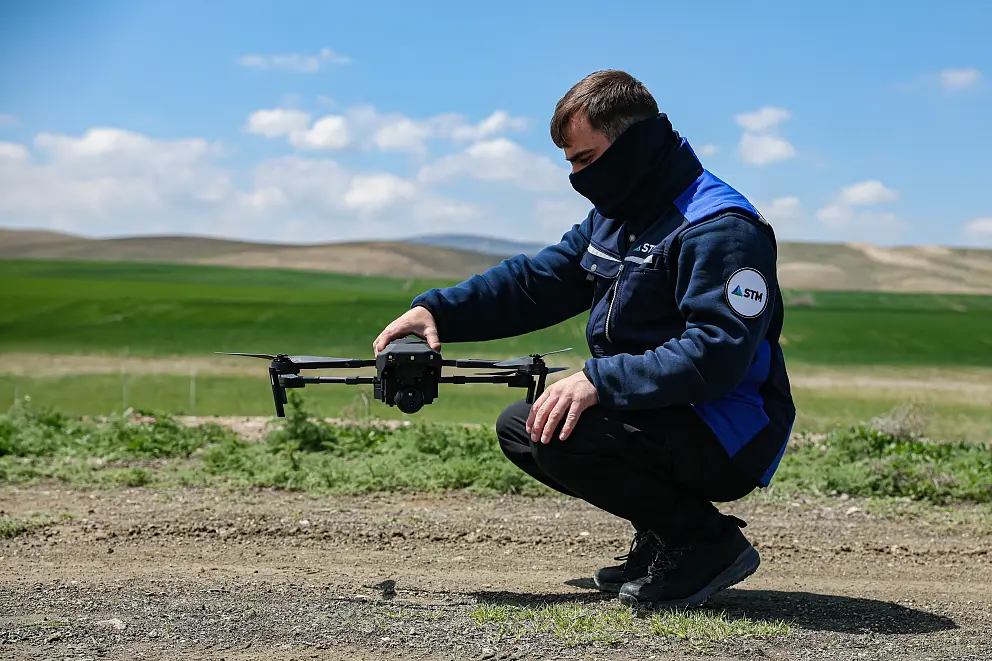

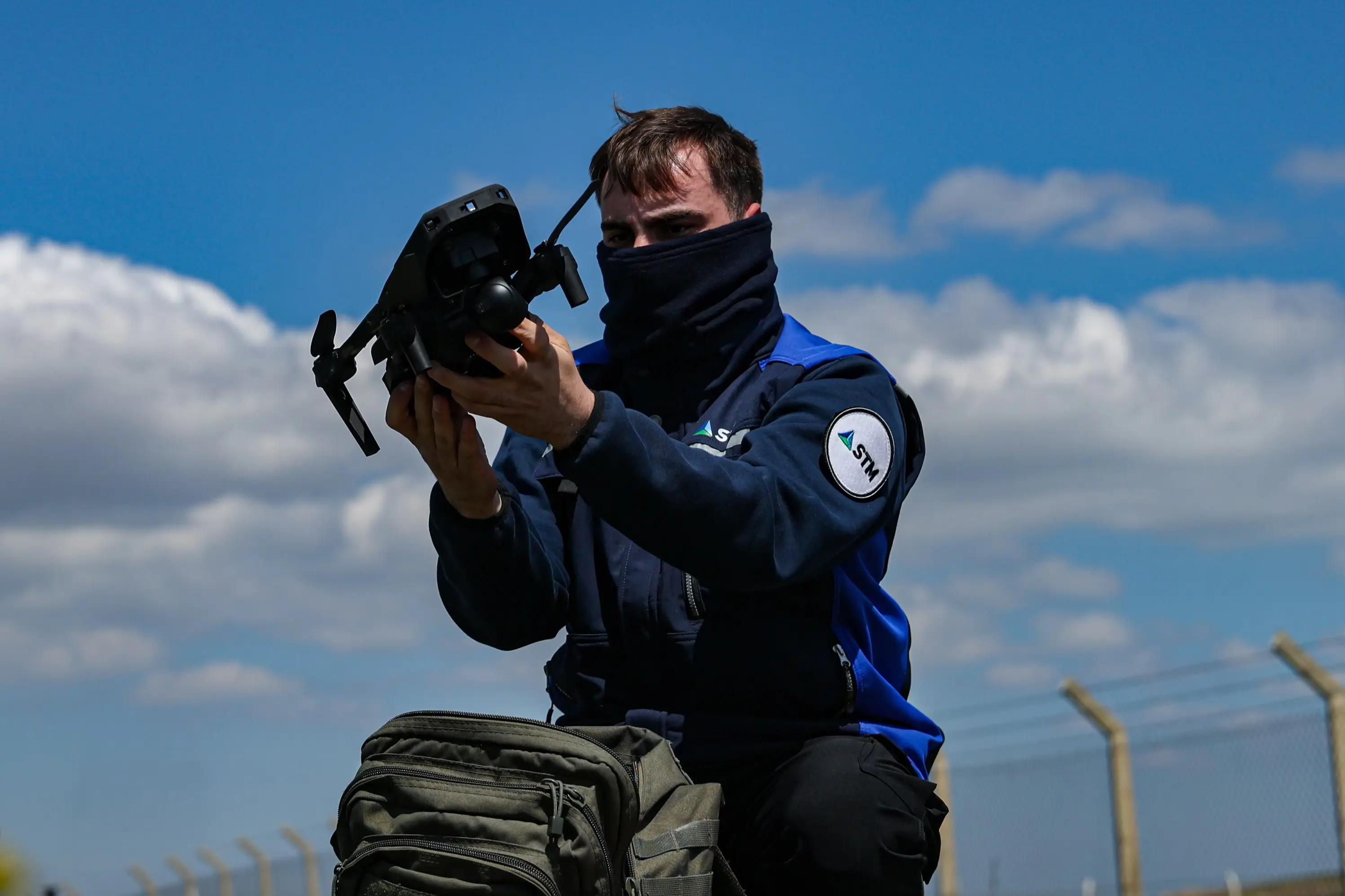

With its compact, foldable structure and a take-off weight of under 2.5 kg, the system can be easily deployed by a single soldier from a backpack.
It provides the rapid and reliable Intelligence, Reconnaissance, and Surveillance (ISR) solutions required by agile units, especially in asymmetric warfare environments.
Featuring an electronic warfare-resistant architecture and advanced imaging technologies, TOGAN-M offers a cost-effective and indigenous solution for both military and strategic civilian use cases.
Equipped with integrated high-resolution day and thermal (night) camera systems on a 3-axis stabilized gimbal, TOGAN-M delivers effective results through various optical zoom levels and flight control software customized to military standards.
The system is designed for full compatibility with military coordinate systems and military-grade map overlays, providing superior ISR capabilities in both confined urban settings and open terrains across diverse environmental conditions.
System Capabilities
- Rapid Deployment: Ready for mission in under 1 minute.
- Compact Design: Lightweight and foldable for easy man-portability.
- Hybrid Zoom: Dual EO cameras providing both optical and digital hybrid zoom.
- Night Vision: Integrated thermal imaging for 24/7 operations.
- Precision Targeting: Integrated Laser Range Finder (LRF) for accurate distance measurement.
- Mission Planning: Advanced autonomous mission and route planning.
- GNSS-Denied Operation: Optical flow camera for autonomous flight in GNSS-denied environments.
- Autonomous Landing & Take-Off: Full autonomy independent of GNSS.
- Data Transmission: High-speed photo/video recording and real-time streaming.
- LTE Connectivity: Extended operational capability via LTE link.
- Mini GCS: Compact and ergonomic Ground Control Station.
- Embedded Simulation: Built-in training simulator accessible via GCS.
Camera Payload (Integrated POD)
- Integrated Multi-Sensor POD: (EO / IR / LRF)
- Dual 4K Ultra-HD Electro-Optical (EO) Cameras
- 5x Optical Zoom
- 30x Hybrid Zoom
Data Link
- Frequency Hopping Spread Spectrum (FHSS)
- Communication Range: 6500 m
Geometric Configuration
Quadrotor (4-Motor) UAV
Take-off Weight (Including Camera)
2350 gr
Flight Endurance
30 Minutes
Autonomous Cruise Speed
15 m/s
Wind Resistance
10 m/s
Operating Temperature
-10 °C to +40 °C
Communication Range
6500 m (Line of Sight)
Mission Altitude (AGL/MSL)
500 m / 3000 m
GNSS-Denied Capabilities
Autonomous Take-off, Landing, and Hover
Autonomous Vision Modes
Target Tracking and Moving Target Tracking
Visual Landing Capability
Fully Autonomous Landing based on Visual Reference Markers
LTE Capability
UAV Control and Video Streaming (Auto-activates on link loss)
Gimbal Capabilities
3-Axis High-Precision Camera Stabilization and Control System
