BOYGATM

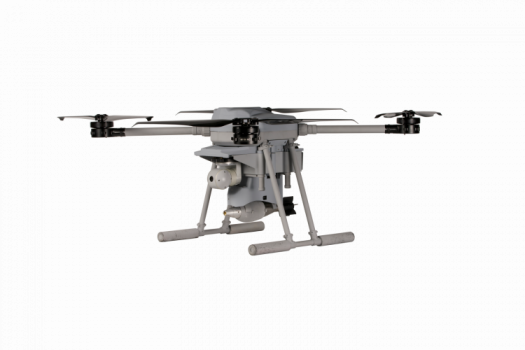

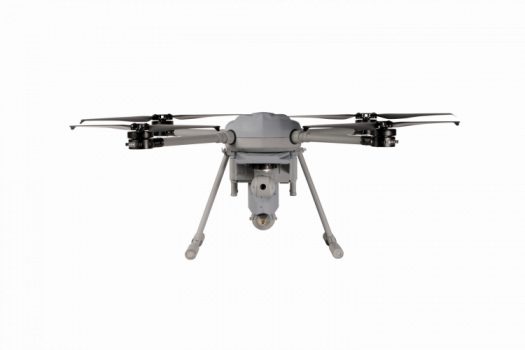

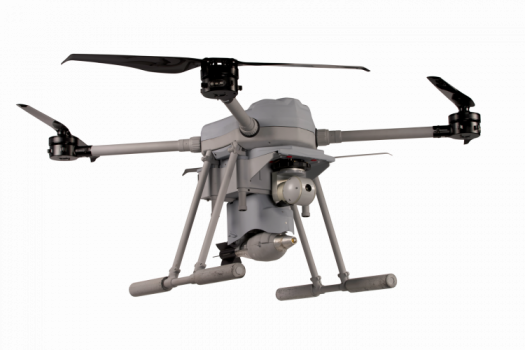

Autonomous Multi-Rotor Combat UAS with Mortar Payload
Ammunition Drop UAV is a UAV solution that can carry 81 mm and 60 mm mortar ammunition adapted to the mechanism that releases the safety system, and can carry out the planned task and drop the useful loads on the target or coordinate it chooses. It has an algorithm that helps target estimation of mortar ammunition. It performs a task at the level of “Man-in-the-loop” (where the user is in the loop) by following the target selected by the user from the screen image with image processing algorithms. Munition system integration is carried out in cooperation with MKE.
Mechanical and Flight Features
| Dimensions | 800x800x500 mm |
| Diagonal Lenght | 1150 mm |
| Communication Range | 5 km |
| Weight (Without Payşpad) | 15 kg |
| Take Off Weight | 17 kg |
| Endurance | 30 min. (With one ammunition) |
| Maximum Operating Altitude | 3000 mt (MSL) |
| Maximum Cruise Speed | 54 km/h |
| Maximum Wind Resistance | 10 m/sn |
Download Brochure
Ground Control Unit
| Tablet | 10.1 inch touch screen |
| Joystick | Yes |
| Working Time With Battery | 2 hours |
| Communication | Internal and external antenna |
Imaging System
| Gimbal | 3 axes |
| Image Quality | Full HD 1080 (1920*1080) |
| Lens Optical Zoom | 30x |
