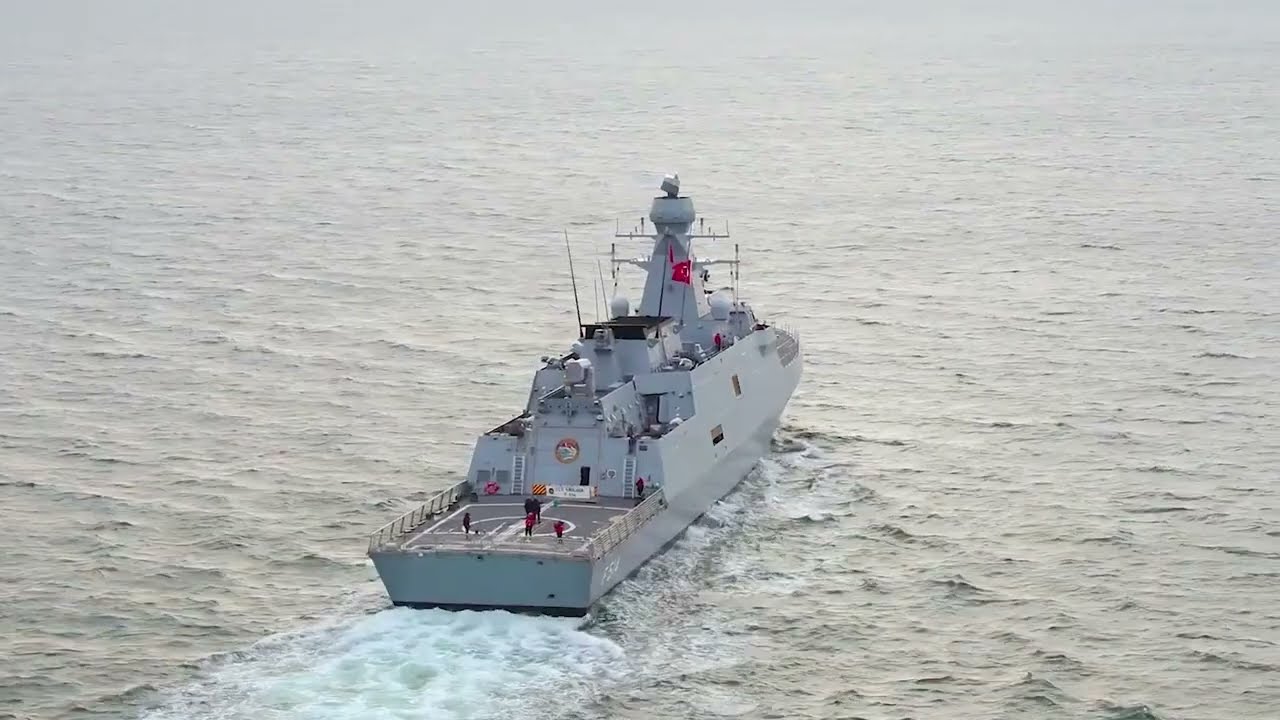

Ada Class Corvette
Ada Class Corvette can perform the determination, location, classification, identification and destruction of air, surface and underwater targets and provide Naval Gunfire Support. In addition to avoiding any potential threats, Corvettes can perform maritime operations such as maritime surveillance and patrol, coastal and infrastructure protection, supervision and surveillance of Exclusive Economic Zone.
Capabilities and
Competencies
- High Maneuvering Capability
- Sea Keeping and Stability
- High Durability and disturbed sensors & weapons in response to fires and damages.
- Shock Absorber and Reducer Implementation and armed rotection against Vibration and Damage
- Stealth Design and Low Radar Cross Section
- Reduces Underwater Noise Against Threats and Degaussing System
- IR Signature Monitoring System
- Redundancy Philosophy
Features
Helicopter Platform & Hangar: Capacity to carry 2 x S70 Seahawk helicopters
(One in the hangar and one on the platform)
Ship’s Boats: 2 x RHIB
Accommodation: Comfortable Accommodation for 86 crew
Growth Capabilities: Custom Sensors & Weapons
Higher Accommodation
Sensors and
Weapons
- 3D Search Radar
- E/O Sensors
- F/C Radars
- LPI Radar
- Electronic Support System
- Laser Warning System
- Torpedo Detection / Countermeasure
- Hull Mounted Sonar
- SSM (HARPOON)
- 2 x 12.7 mm Gun (E/O Capability)
- RAM
- Decoy System
Close-In Air Defense Missile System
ATMACA Anti-Ship Missile
3D Search Radar
76 mm Main Gun
ADVENT Combat Management System
Length Overall
99.56 meters
Length Waterline
91.40 meters

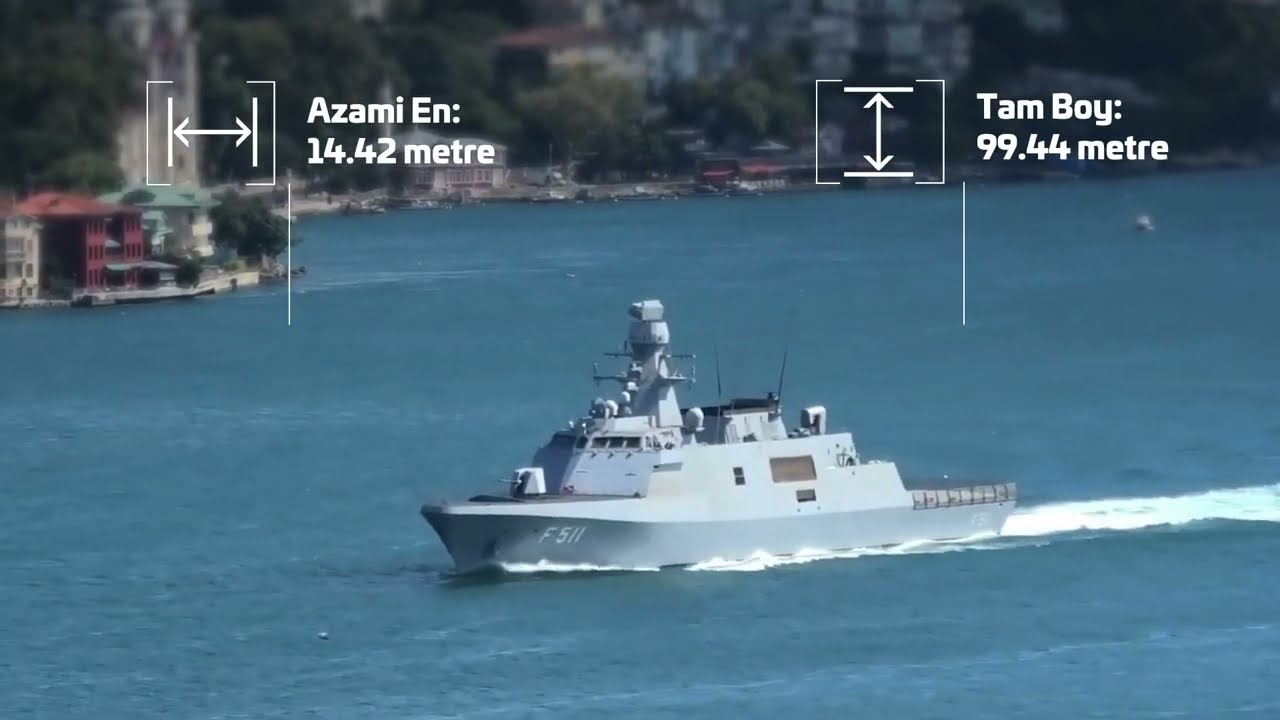

Beam Max
14.42 meters
Draught
3.85 meters
Displacement
2400 tons
Maximum Speed
29+ knots
Cruise Speed
15 knots
Endurance
3500 Nm at 15 knots
Main Propulsion
CODAG
2x shafts and CPP propellers
Power Generation
4 x diesel generator
