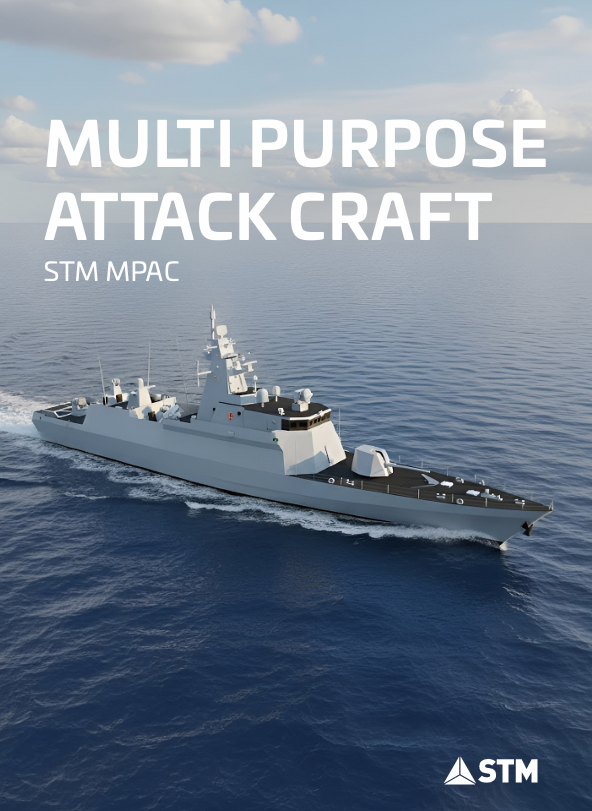

Multi Purpose Attack Craft (STM-MPAC)
STM-MPAC is a monohull platform that is designed to perform anti surface and anti air warfare along with patrol duties in shallow waters and open seas under heavy sea conditions. STM-MPAC is also capable of operating at high speeds according to its optimized effective hull form and main propulsion system configuration.
Sensors and Weapons
- Combat Management System
- 3D Surveillance Radar/IFF
- ESM System
- ECM System
- 2x Fire Control Radar (EO Suit TV/IR/LRF)
- E/O Director (EO Suit TV/IR/LRF)
- Laser Warning System
- 76 mm Gun
- 2x 12.7 mm Stabilized Gun (EO)
- Point Defence Missile System (PDMS)
- Surface-to-Surface Missile (SSM) System
- 2 x RF/IR Chaff Decoy Launchers
- 2 x Navigation Radar (X-Band, combined 360° coverage picture)
- LPI Radar
- Integrated (Internal/External) Communication System
- INMARSAT SATCOM
- Ship Data Distribution System
- Ship Local Area Network
- Navigation Systems
- WECDIS
- WAIS
Spesifications
Main Propulsion
- 2x Gas Turbines + 2x Diesel Engines
- 3x Waterjets
Accommodation
- Comfortable accommodation for 40 crew
- Galley, Dry Provision Room, Cold and Cool Rooms, Office etc.
Power Generation
- 4x Diesel Generator
Ship's Boats
- 1x RHIB
Growth Capabilities
- Custom sensors & weapons
- Additional accommodation area
Close-In Weapon System (CIWS)
Anti-Ship Missile System
3D Search Radar
76 mm Main Gun
Fire Control System
Length Overall
66.2 m
Length Waterline
60.0 m
Max. Beam
9.7 m
Draft
2.4 m
Tonnage (Displacement)
620 tons
Max. Speed
40+ kts
Cruising Speed
20 kts
Endurance
1100 nm at 20 kts
Ship Vehicles
1x RHIB
Power Generation
3x Diesel Generator
