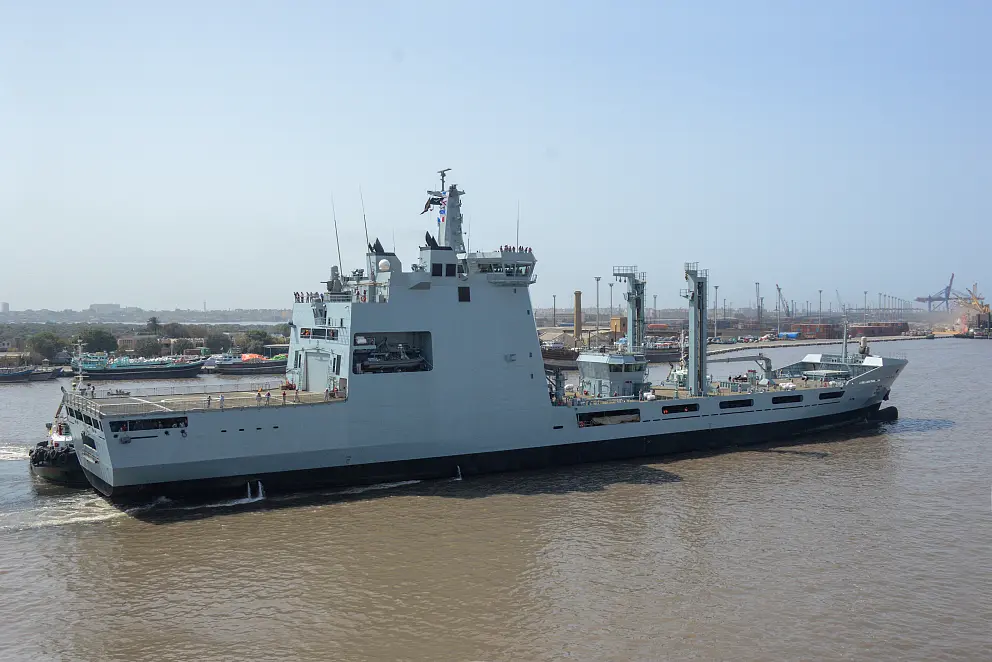

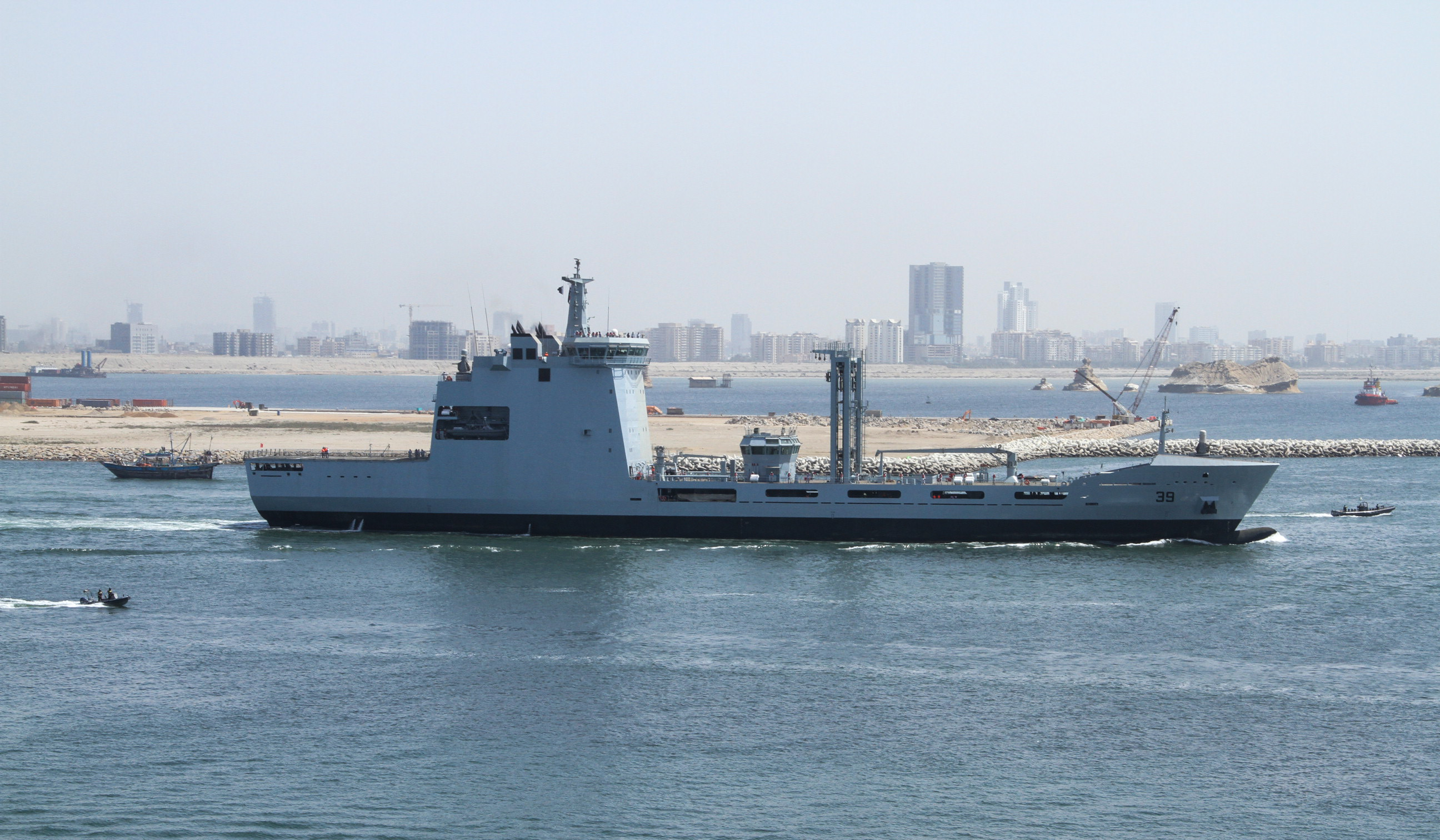

Logistics Support Ship

Logistics Support Ship is a double-hull vessel, designed for providing logistics support to the ships at sea in terms of dry and liquid cargo both during peace and war, equipped with conventional all dieasel-CPP propulsion system, conforming naval norms/standards and classification rules.

Design, Purpose and Capabilities

The Logistics Support Ship is mainlydesigned to perform the following tasks:

Peacetime:

  • Providing Dry and Liquid Cargo Logistics Support to Ships at Sea
  • Conducting Search & Rescue Operations Through Helicopter Deployed on Board

Wartime:

  • Providing Dry and Liquid Cargo Logistics Support to Ships at Sea
  • Conducting Search & Rescue Operations Through Helicopter Deployed on Board
  • Providing Limited Medical Support to Ships at Sea

Capabilities

  • Replenishment at Sea During Day and Night, Including HIFR
  • Providing Adequate Support to Organic Helicopter Operations
  • Future Installation Possibility for Defence-Purpose Modern, Multidimensional Sensor/Weapon Suites
  • Defence Capability against Chemical, Biological, Radiological and Nuclear (CBRN) Threats

Technical Features

Sensors and Weapons

  • 2 x Close In Weapon System (CIWS)
  • ESM System (Electronic Warfare Support Measures), MASS Decoy System
  • Naval Combat Management System (NCMS)
  • 2 x 25 mm Stabilised Guns (STOP)
  • Infrared Search and Track System (IRST)
  • Internal / External Communication Systems
  • GMDSS Suite, VoyageData Recorder (VDR), Sound Reception System
  • Bridge Control System
  • Navigation Suite: Primary and Secondary Gyro Systems, Magnetic Compass, 2 x Radar Systems (I and F Band), WECDIS, Echo Sounder, EM Log, GPS, AIS, AUTO-PILOT etc.

Main Propulsion Power

  • 2 x 7000 kW, medium speed diesel
  • 2 x shafts and CPP propellers

Auxiliary Engines

4 x 1313 kVA DGs

Helicopter Platform & Hangar

  • Helicopter deck for landing and take off of Seaking size helicopters
  • Helicopter hangar for one helicopter

Crafts

  • 2 x RHIB
  • 1 x Craft

Mess Deck

Comfortable living space for 201 personnel

Lenght Overall

158,4 meters

Length Waterline

155,9 meters

Beam Max

22,0 meters

Draught

7,05 meters

Tonnage (Displacement)

16100 tons

Maximum Speed

20 knots

Cruising Speed

15 knots

Endurance

10,000 nm at 15 knots speed

Living Area

Comfortable living space for 201 staff

Power Generation

4 x 1313 kVA DGs
