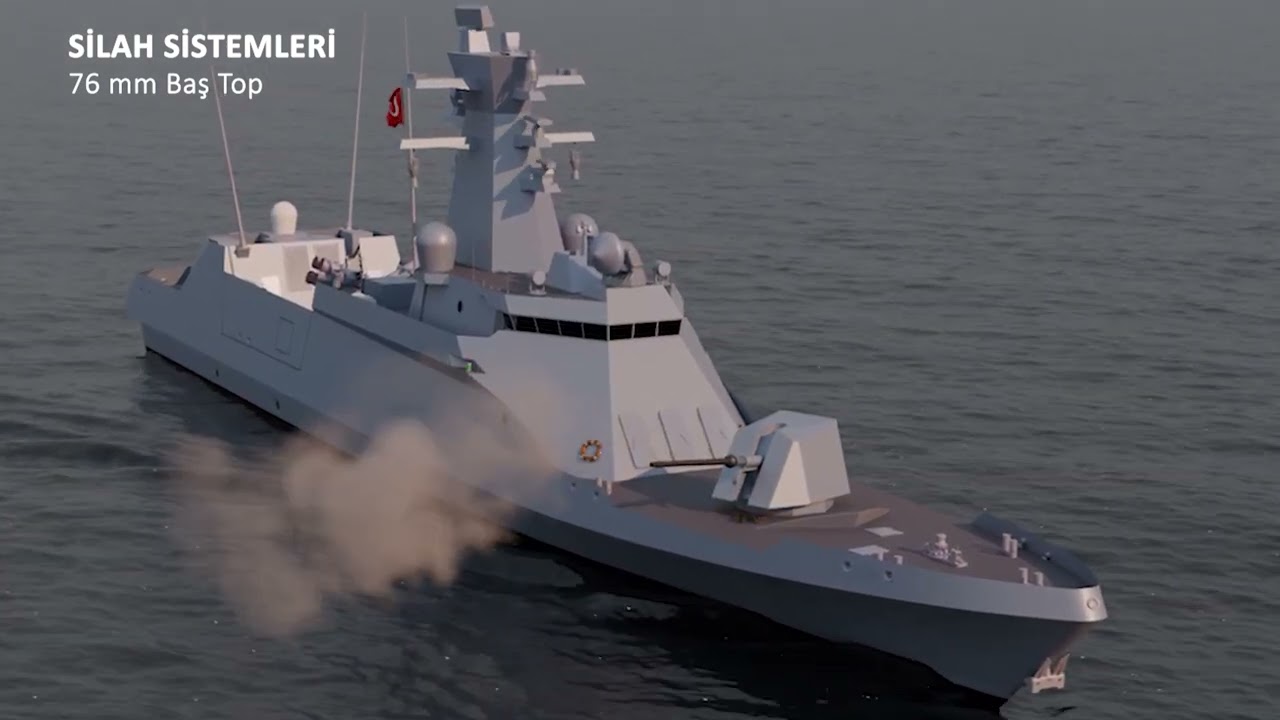

National Fast Attack Craft (FAC) Project
To initiate the development of a fast attack craft based on a national design, the “Turkish Type Fast Attack Craft Project – Phase 1 Contract Design Agreement” was signed between the Presidency of the Republic of Türkiye, Secretariat of Defence Industries (SSB) and STM on August 31, 2020.
Under the main contractorship of STM, the project has covered the definition of system requirements, concept selection, preliminary design, and contract design phases for fast attack crafts planned to be procured by the Turkish Naval Forces Command. These platforms are intended to ensure sea control and dominance in operational zones by neutralizing hostile elements and safeguarding national assets. During the project, original design activities were carried out including hull form optimization, structural analysis, main propulsion system, ship electrical system design, and weapon configuration, along with the development of corresponding design packages.
Following the completion of the design phase, a contract for the procurement of one prototype fast attack craft was signed between SSB and STM on September 9, 2024. The first steel cutting ceremony of the National Fast Attack Craft was held on July 8, 2025.
The platform is currently under construction at İstanbul Denizcilik A.Ş. Shipyard, with STM serving as the main contractor. With this project, Türkiye has gained the capability to construct a fast attack craft platform entirely of its own national design for the first time.
The National Fast Attack Craft (FAC) will be equipped with the necessary skills to carry out surface warfare missions by positioning itself in preplanned concealment positions, thereby complicating hostile detection and identification efforts. It will be capable of conducting surface engagements using long-range guided missiles and conducting coordinated attacks with frigates and airborne vehicles when necessary. The ship will be equipped with adequate air defense systems to ensure self defence and will perform high speed and maneuverability. From design to construction and procurement of outfitting materials, the project aims to utilize indigenous resources to the highest extent possible.
Capabilities | Competencies
- Shallow water operational capability
- Low Radar Cross Section (RCS)
- Low Infrared Signature (IRS)
- Coastal and Offshore Reconnaissance/Patrol, Surface Picture Compiling
- Protection of Maritime Jurisdiction Rights and Interests
- Operable at a minimum wave height of 2 m when fully loaded at sea
- Capable of conducting live firing with a route speed limit of 3-4 m wave height
Features
Propulsion Systems
- 4 x Diesel Engine
- 4 x Steerable Waterjets
Ship’s Boat
- 1 x Boat (5-person capacity)
Accommodation
- Accommodation and mess areas for 36 personnel, offices, etc.
- Galley, dry provisions storage, cold rooms, etc.
Communication Systems
- Communication Control System (CCS)
- INMARSAT and SATCOM (Ka / X Band)
Electrical System
- 3 x Diesel Gensets
Growth Capability
- Integration of special sensors and weapons
Armament
- 76 mm Main Gun
- Surface to Surface Missile System (SSM)
- PDMS
- 2 x 12,7 mm Remote Controlled Weapon System
- 2 x Chaff/Decoy System
Combat Systems and Sensors
- Combat Management System (CMS) (NATO/National TDL Link 11-22)
- 3D Surveillance Radar
- Fire Control Radar (including EO Suite TV/IR/LRF)
- Electro-Optical Director (EO Suite TV/IR/LRF)
- Electronic Support Measures (ESM) System
- Laser Warning System
- KATS (360 Degree Rotating Antenna)
- IFF (inc. Mode 5)
Navigation Sensor and Systems
- 22x Navigation Radars (X-Band)
- Low Probability of Intercept (LPI) Radar
- GPS/DGPS
- 2x Inertial Navigation System (INS) Gyros
- (W)ECDIS (Warship Electronic Chart Display and Information System)
- (W)AIS (Wide Area Information System)
- Ship Data Distribution System
- Integrated Ship Information System (ISIS) (NATO/National)
Length Overall (LOA)
68.00 m
Moulded Breadth (Bmax)
9.34 m
Design Draft (T)
2.50 m
Design Displacement
700 tons
Max Speed
39+ knot
Cruising Speed
20 knot
Range
800 nm (min.)
Endurance
7 days
