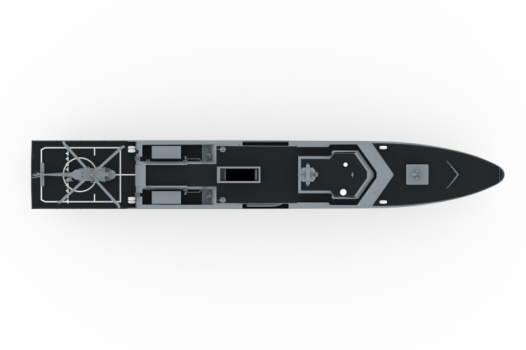

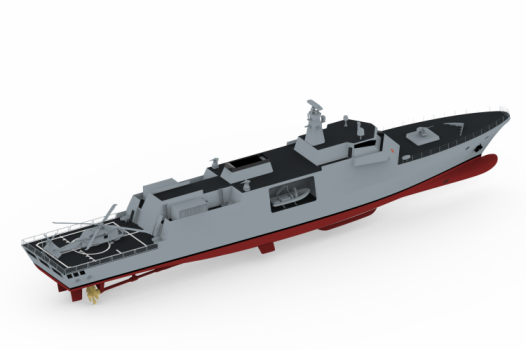

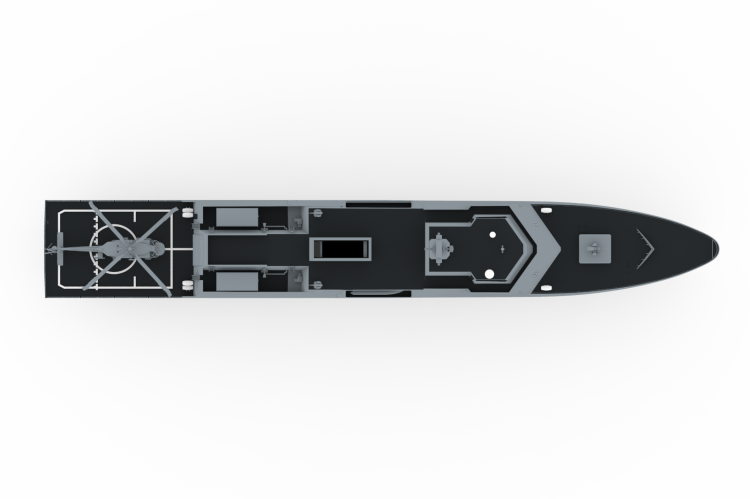

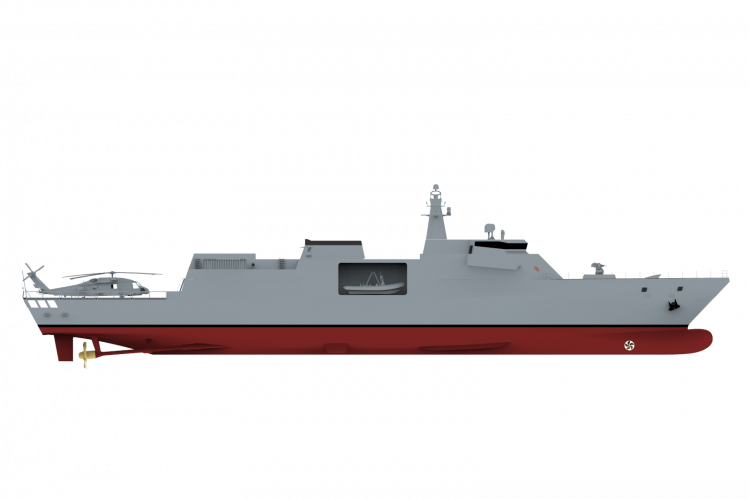

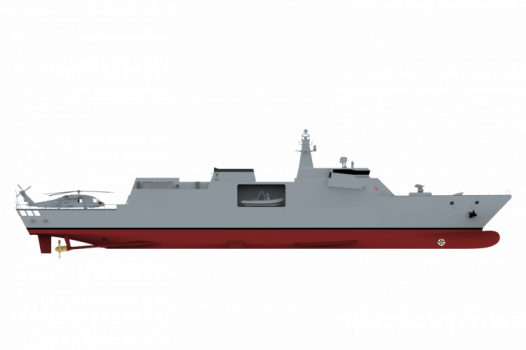

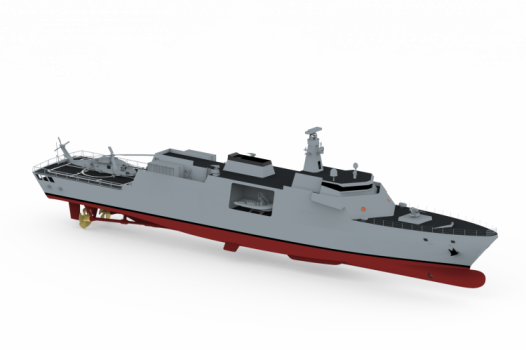

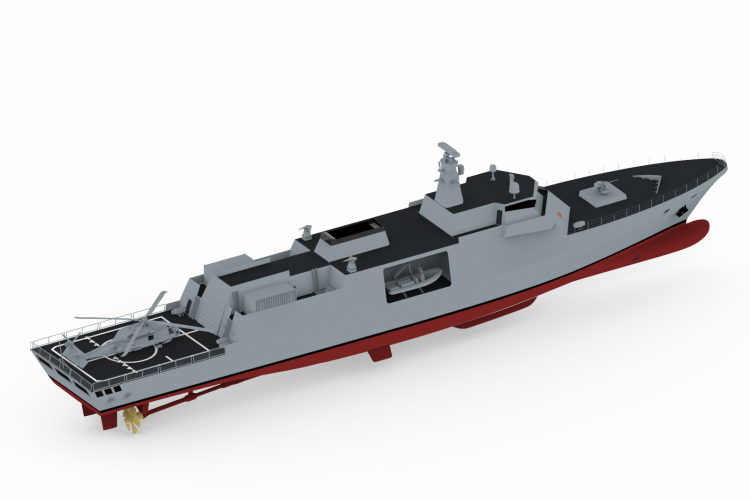

Offshore Patrol VesselOPV-2100
Design, Purpose and Capabilities
OPSV-2100's main missions are;
Maritime Patrol
Surface Warfare Operations as a deterrent
Maritime police (repression of illegal fishing, illicit trade in drugs, piracy, human trafficking, etc.)
Search and Rescue operations (SAR)
Day & Night HELO operations
Day &Night HELO operations capabilities with HIFR and Vertrep
Economic exclusive zone (EEZ) monitoring & surveillance
Spills and contamination control
Training
In order to carry out the tasks assigned, OPV-2100 has the following capabilities;
20+ knots maximum speed
Minimum 5000 n.miles endurance at 15 knots crusing speed
Survivability up to sea state 7+
Weapon and sensors operations up to sea state 5+
Helo operations up to sea state 4+
Three machine guns, Fwd. Gun 30 mm., others 12.7 mm.
Helicopter platform for day & night landing and takeoff (NH-90 type helicopter)
Main Dimensions
Length Overall
: 99.56 meters
Length Waterline
: 93.81 meters
Max. Breadth
: 13.95 meters
Draft
: 3.55 meters
Tonnage
Displacement
: 2100 tons
Speed & Endurance
Max Speed
: 20+ knots
Economical Speed
: 15 knots
Endurance
: 5000 n.m. at 15 kts.
Tank Capacities
Fuel (F76)
: 250 tons
Fresh Water
: 30 tons
Power Generation
: 4 x 560 KVa, diesel generators 1 x 160 kW, air cooled emergency diesel generator
Ship’s Boat & Containers
: 2 x RHIBs (at least 6 people with maximum speed of 45 knots) 2 x 20 ft Containers with handlings system
Sensors & Weapons
Combat Management System
IFF (Interrogator/Transponder) OPTIONAL
Navigation Radar (X-Band x 2,S Band x1)
Navigation Suit (GPS, Automatic ldentification System (AlS), Echo-sounder, Speed-log, Wind System, Electronic Chart Display (ECDIS), Gyros (Main and Aux.) and Digital Repeaters
Electro-Optical Ssytem(TV/IR/LRF)
Electronic Support Measure System (ESM)with Chaff Decoy (RF/lR)System (OPTIONAL)
Weapons (1x 30 mm and machine guns and 2xt2.7 mm Stabilized Machine Guns with EO)
TACAN System (For Helo operations)
Main Propulsion
Main Engines
2 x Diesel Engines (2 x 4300 kW)
Propulsion Units
Bow Thruster
Accommodation
Comfortable accommodation for 80 crew in total
Length of stay at sea:30 days
Growth Capabilities
Custom Sensors & Weapons
Higher Accommodation
