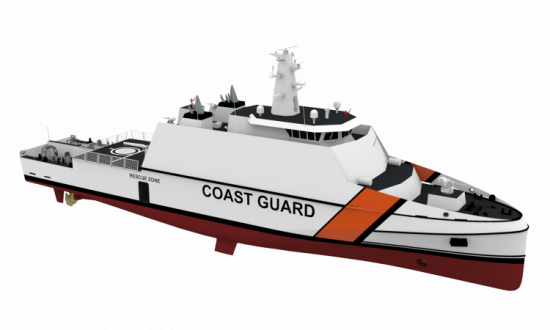

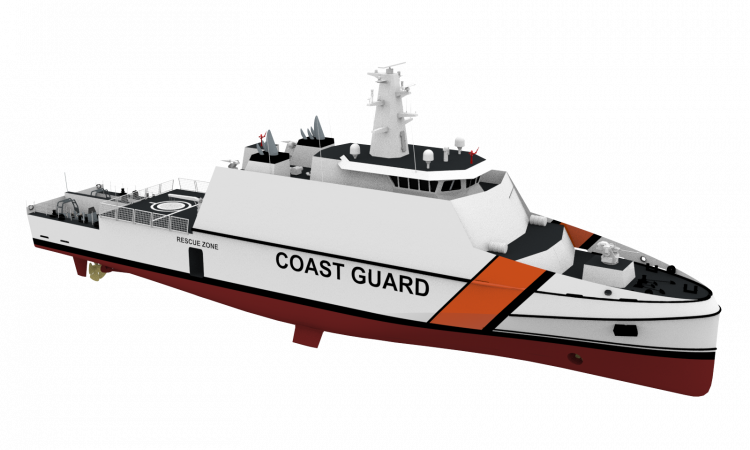

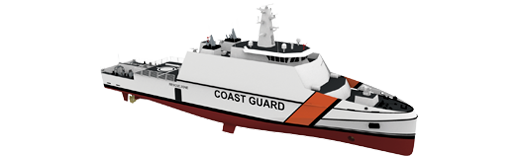

CG-1071
Coast Guard Ships
Coast Guard Ships can be tasked with search and rescue operations, Humanitarian Assistance and
Disaster Relief (HADR) operations, maritime patrol and surveillance operations and protection of
maritime jurisdiction areas.
Coast Guard Ships can be configured with the capability of law enforcement special forces to
conduct counter-drug, counter-piracy, and counter-terrorist operations.
STM provides turnkey solutions for Coast Guard Ships to be configured in accordance with each
country’s maritime law enforcement agency requirements.
Download Brochure
Capabilities
Sensors & Weapons
1 x 30 mm/25 mm Gun
2 x 12.7 mm Gun
HF Radio Systems
V/UHF Radio Systems
Weather FAX
S/P Telephone System
Local Area Network (LAN)
Satellite TV System
CCTV System
1x X-Band Radar
1x S-Band Radar
2x GPS
Thermal Cameras
Ship Data Distribution System
ECDIS
Main Propulsion
2x or 4x Diesel Engine (acc. to speed
requirements)
2x Propeller (CPP or FPP)
1x Tunnel thruster
Power Generation
3x Diesel Generator
Coast Guard Functions Capabilities
3x 11 meters RHIBs (stern ramp launch and
recovery system)
1x 20 ft multi mission container space
Rescue Zone for multi purpose missions
(50 persons capacity)
Sick-bay
Flight deck and Hangar for 1 UAV
A hydraulic-telescopic crane of 10 tons (SWL)
to serve aft deck area
2x Water cannons
Law Enforcement Capabilities
Law Enforcement Operation Center
Detention Area
Accommodation
Comfortable accommodation for 35 crew
Growth Capabilities
Custom sensors & weapons
Additional accommodation area
Main Dimensions
| Lenght Overall | 66 metre |
| Lenght Waterline | 66 metre |
| Max. Breadth | 12 metre |
| Draft | 2,8 metre |
Speed & Endurance
| Max Speed | 22 knot |
| Cruising Speed | 16 knot |
| Endurance | 16 knot hızda 2700+ nm |
Tonnage
| Displacement | 1071 Ton |
