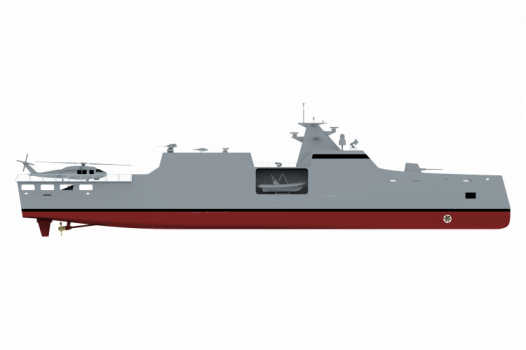

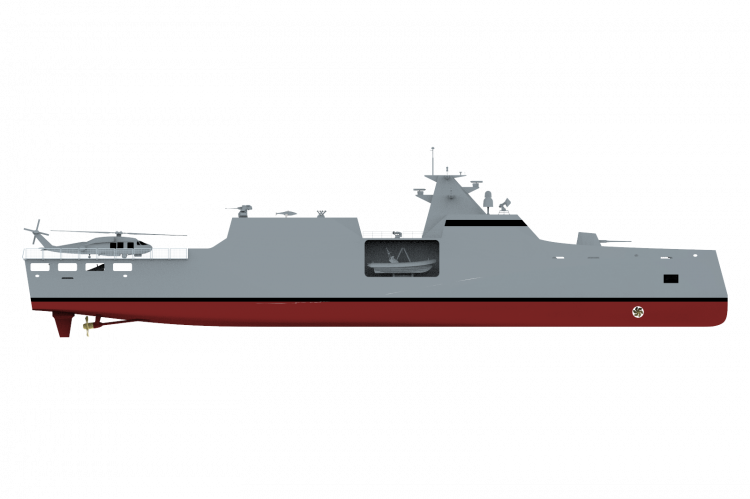

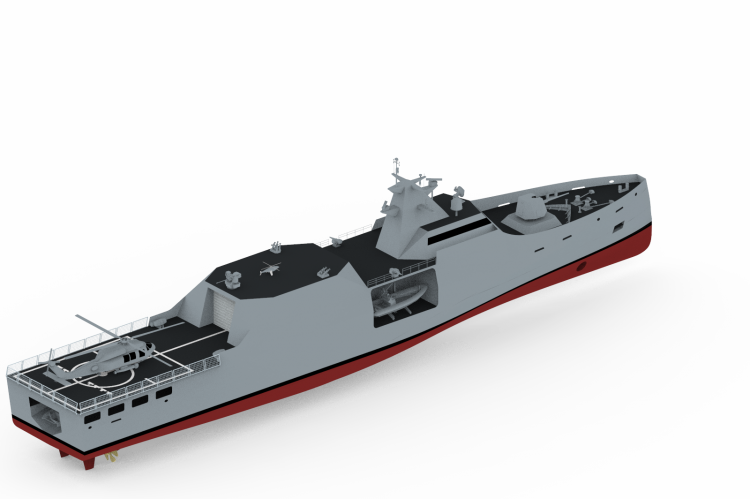

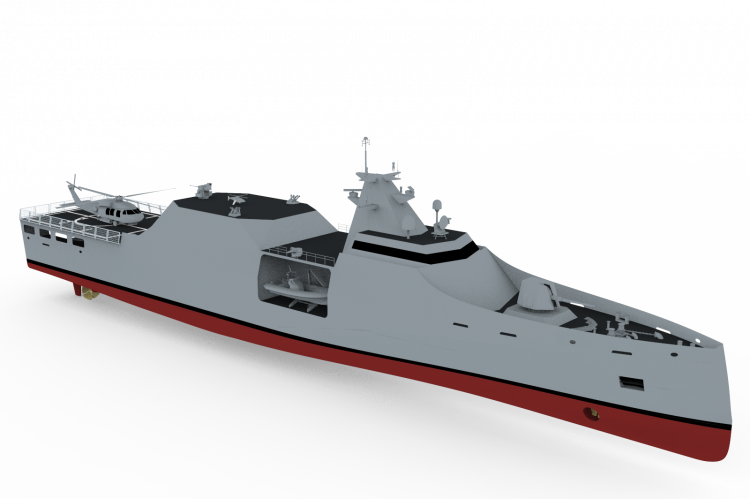

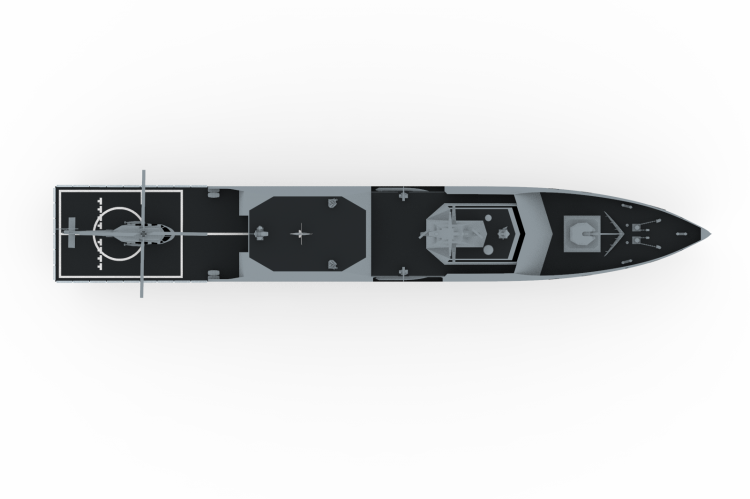

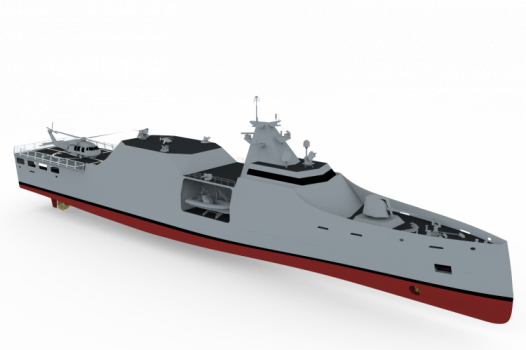

Offshore Patrol Vessel

OPV-1900

Design, Purpose and Capabilities

OPV-1900's main missions are;

  • Coastal and Offshore Patrol
  • Search and Rescue (SAR)
  • Diving & Salvage Operations Support
  • Replenishment of Ships at Harbour
  • Logistic Support
  • Training

In order to carry out the tasks assigned, OPV-1900 has the following capabilities;

  • 18 knots maximum continous speed
  • 5500 n. miles endurance at 16 knots economical speed; operations at sea state 5+
  • Weapon and sensors operations up to sea state 5+
  • Helo operations up to sea state 4+
  • Reduced Radar Cross Section (RCS)
  • Two damage control zones; redundant propulsion, maneuvering and electrical systems
  • Fwd. Gun up to 76 mm., others up to 25 mm.
  • Helicopter platform for 10 tons helicopter
  • A clear aft deck area of 100 m2 without helicopter
  • A 8 tons SWL hydraulic telescopic crane
  • Large aft storage area with sliding hatch on aft deck



Main Dimensions
Length overall : 89.50 meters
Length waterline : 88.60 meters
Max. Breadth : 13.10 meters
Draft : 3.15 meters
Tonnage
Displacement : 1900 tons
Speed & Endurance
Max cont. speed : 22+ knots
Economical speed : 16 knots
Endurance : +5500 n.m. at 16 kts.
Tank Capacities
Fuel (F76) : 250 tons
Fresh Water : 26 tons
Power Generation : 3x 500 KVa diesel generators
1 x 160 kW, air cooled emergency diesel generator

Rescue Equipment

  • A hydraulic-telescopic crane of 8 tons (SWL) to serve aft deck area
  • A clear aft deck area of 300 m2 also for landing and take off of 10 ton-helicopter
  • 3 RHIB
  • A sick-bay



Sensors & Weapons

  • Combat Management System
  • IFF (Interrogator/Transponder) OPTIONAL
  • Navigation Suit (GPS, Automatic ldentification System (AlS), Echo-sounder, Speed-log, Wind System, Electronic Chart Display (ECDIS), Gyros (Main and Aux.) and Digital Repeaters
  • Electro-Optical Ssytem(TV/IR/LRF)
  • Electronic Support Measure System (ESM)with Chaff Decoy (RF/lR)System (OPTIONAL)
  • 2 x Navigation Radars (LPI)
  • 4 x 25 mm Guns or up to 1 x 76 mm fwd. Gun and 3 x smaller guns
  • Reserved area for SSM System etc.

Main Propulsion

  • Main Engines
    • 2 x Diesel Engines, (2 x 4300 kW)
  • Propulsion Units
    • 2 x CPP Propellers
  • Bow Thruster
    • 1 x Tunnel Thruster

Accommodation

  • Comfortable accommodation for 88 + %10 crew in total
  • Galley, dry provisions, freezing rooms, wardroom/mess halls, offices, CIC, etc.

Growth Capabilities

  • Custom Sensors & Weapons
  • Higher Accommodation
