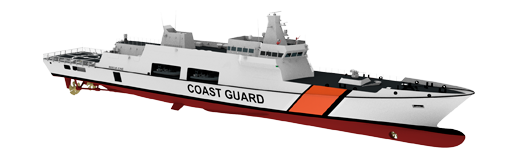

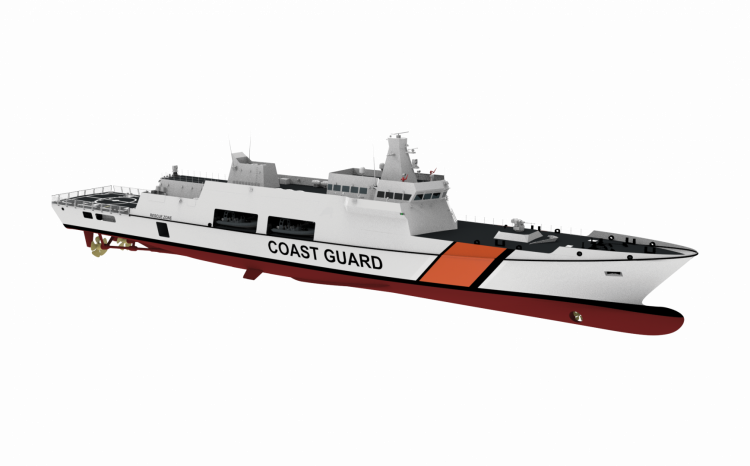

CG-3100
Coast Guard Ships
Coast Guard Ships can be tasked with search and rescue operations, Humanitarian Assistance and
Disaster Relief (HADR) operations, maritime patrol and surveillance operations and protection of
maritime jurisdiction areas.
Coast Guard Ships can be configured with the capability of law enforcement special forces to
conduct counter-drug, counter-piracy, and counter-terrorist operations.
STM provides turnkey solutions for Coast Guard Ships to be configured in accordance with each
country’s maritime law enforcement agency requirements.
Download Brochure
Capabilities
Sensors & Weapons
1 x 30 mm/25 mm Gun
2 x 12.7 mm Gun
HF Radio Systems
V/UHF Radio Systems
Weather FAX
S/P Telephone System
Local Area Network (LAN)
Satellite TV System
CCTV System
1x X-Band Radar
1x S-Band Radar
2x GPS
Thermal Cameras
Ship Data Distribution System
ECDIS
Main Propulsion
2x or 4x Diesel Engine (acc. to speed
requirements)
2x Propeller (CPP or FPP)
1x Tunnel thruster
Power Generation
4x Diesel Generator
Coast Guard Functions Capability
2x 5.5 meters RHIBs (stern ramp launch and
recovery system)
4x 7 meters RHIBs
1x 20 ft multi mission container space
Rescue Zone for multi purpose missions
(50 persons capacity)
Sick-bay
Flight deck for 10 t class helo and Hangar for
1 helo / 2 UAV (for day & night landing and
takeoff)
A hydraulic-telescopic crane of 10 tons (SWL)
to serve aft deck area
Law Enforcement Capability
Law Enforcement Operation Center
Law Enforcement Briefing Center (up to 50
crew)
Detention Area
3x Detention Cell
Accommodation
Comfortable accommodation for 125 crew
Growth Capabilities
Custom sensors & weapons
Additional accommodation area
Technical Spesifications
Main Dimensions
| Lenght Overall | 113,2 m |
| Lenght Waterline | 105,2 m |
| Max. Breadth | 14,4 m |
| Draft | 4,05 m |
Speed & Endurance
| Max Speed | 25+ kts |
| Cruising Speed | 14 kts |
| Endurance | 8000 nm at 14 kts |
Tonnage
| Displacement | 3100 t |
